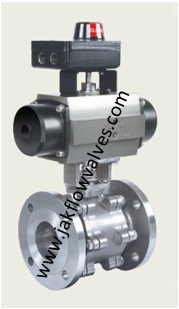

Manual Gear/ Pneumatic Actuator/ Electric Actuator Operated 3 Piece Design Metal Seated Ball Valve
Specifications
| Design | 3 Piece Fire Safe Design Floating Type Ball Valve |
|---|---|
| Body | WCB / CF8 / CF8M / CF3M |
| Size | 1/2” to 10” |
| Ball | CF8 / CF8M |
| Seals | Metal to Metal |
| Temprature | -50° C to 500° C |
| Pressure | Up to 56 BAR |
| End Connection | Screwed End / Flanged End to ASME B 16.5 Class 150 (300 Class & 600 Class available on Request) |
| OPERATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |
Hand Lever & Gear Operated 2 Piece Design “Fire Safe” Ball Valve
Specifications
| Design | 2 Piece Fire Safe Design Floating Type Ball Valve |
|---|---|
| Body | WCB / CF8 / CF8M / CF3M |
| Size | ½” to 10” |
| Ball | CF8 / CF8M |
| Seat Seal | PTFE / CFT / GFT / PEEK |
| Temprature | Max 180 °C |
| Pressure | up to 56 Kg |
| End Connection | Flanged End to ASME B 16.5 Class 150,300 Class |
| OPERATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |

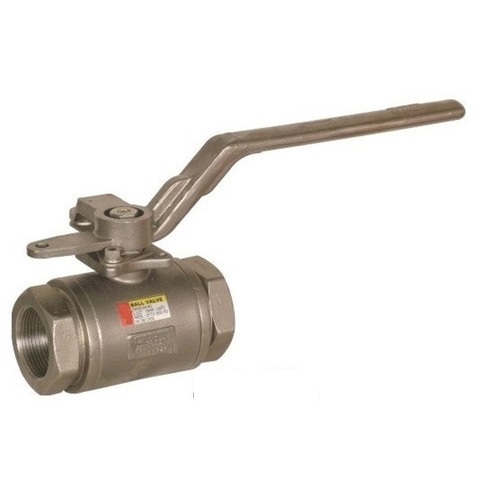

Hand Lever Operated High Pressure Ball Valve
Specifications
| Design | 3 Piece Design Ball Valve |
|---|---|
| Body | WCB / CF8 / CF8M |
| Size | 1/2” to 2” |
| Ball | S.S.304 / S.S.316 |
| Seals | Metal to Metal |
| Temprature | Max 150 °C |
| Pressure | 3000 PSI |
| "O" Ring | NBR / EPDM / VITON |
| End Connection | Screwed End to BSP/NPT |
| OPERATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |

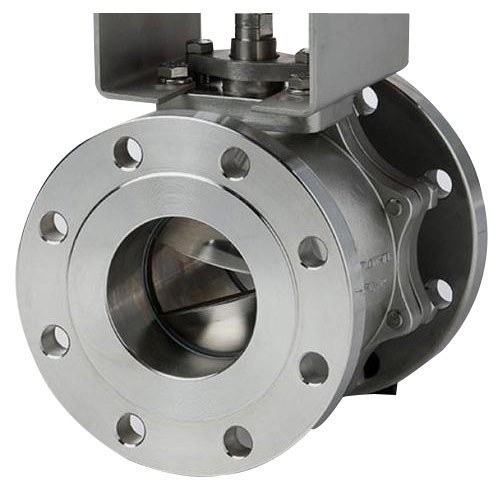

V_PORT-SEGEMENTED-V_KNOTCH BALL VALVE
Specifications
| Model | JVPB |
|---|---|
| Design | 2 Piece Design v-port Ball Valve |
| Body | WCB / S.S. 304 / S.S. 316 / S.S. 316L |
| Size | 1” to 12” |
| Ball | S.S. 304 / S.S. 316 / S.S. 316L |
| Temprature | -20 °C to 150 °C |
| Pressure | Up to 16 BAR |
| End Connection | FLANGED END 150# |
| OPERATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |

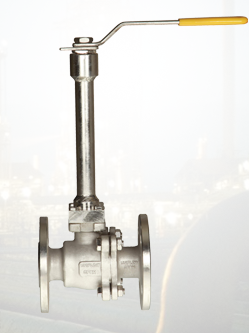

EXTENDED STEM BALL VALVE
Specifications
| Model | 3AWA |
|---|---|
| Design | Extended Stem Ball Valve |
| Body | Forged Carbon / S.S. 304 / S.S. 316 |
| Size | 1" to 8" |
| Ball | S.S. 304 / S.S. 316 |
| Stem | S.S. 304 / S.S. 316 |
| Temprature | -20 °C to 150 °C |
| ANSI Class | 150#, 300#, 600# on Request |
| End Connection | Screwed End- FLANGED END |
| OPERATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |

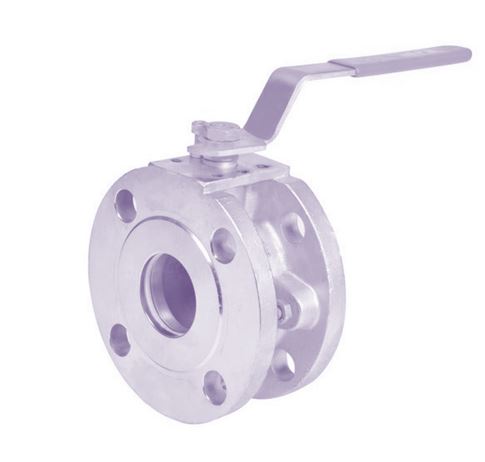

Hand Lever Operated Wafer Type Ball Valve
Specifications
| Model | WTB |
|---|---|
| Design | 2 Piece Design Wafer type Ball Valve |
| Body | WCB / CF8 / CF8M / CF3M |
| Size | 1" to 4" |
| Ball | CF8 / CF8M |
| Seat | PTFE / GFT / CFT / PEEK |
| Temprature | Max 180 °C |
| Pressure | 10 BAR |
| End Connection | Wafer type Flanged End to ASME B 16.5 Class 150 |

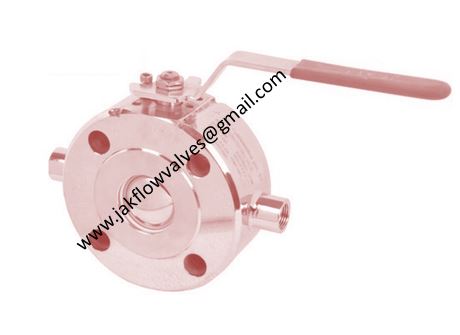

Hand Lever Operated Jacketed Ball Valve
Specifications
| Model | KAG |
|---|---|
| Design | 2 Piece Design Wafer Type Jacketed Ball Valve |
| Body | WCB / CF8 / CF8M |
| Size | 1" to 4" |
| Ball | CF8 / CF8M |
| Steam Seat | PTFE |
| Seat | PTFE / GFT / CFT / PEEK |
| Jacket | S.S. / M.S. |
| Temprature | Max 220 °C |
| Pressure | 10 bar |
| End Connection | Wafer type Flanged End to ASME B 16.5 Class 150,300 |
Hand Lever & Gear Operated 3 Way / 4 Way / 5 Way Ball Valve
Specifications
| Model | SUZ |
|---|---|
| Design | 3 Way-4 Way Design Ball Valve For Multiple Diverting / Mixing Operation available in “T” Port / “L” Port / “X” Port in Full Bore / Reduce Bore |
| Body | WCB / CF8 / CF8M |
| Body / Ball Seat | PTFE / GFT |
| Size | 1/2" to 6" |
| Ball | CF8 / CF8M |
| Temprature | -25 °C to 180 °C Max |
| Pressure rating | PN 16, PN 25, PN 40 |
| End Connection | Screwed End To BSP/NPT, Socket Weld /Triclover Ends, Flanged End To ASME B16.5 Class 150 / 300 |

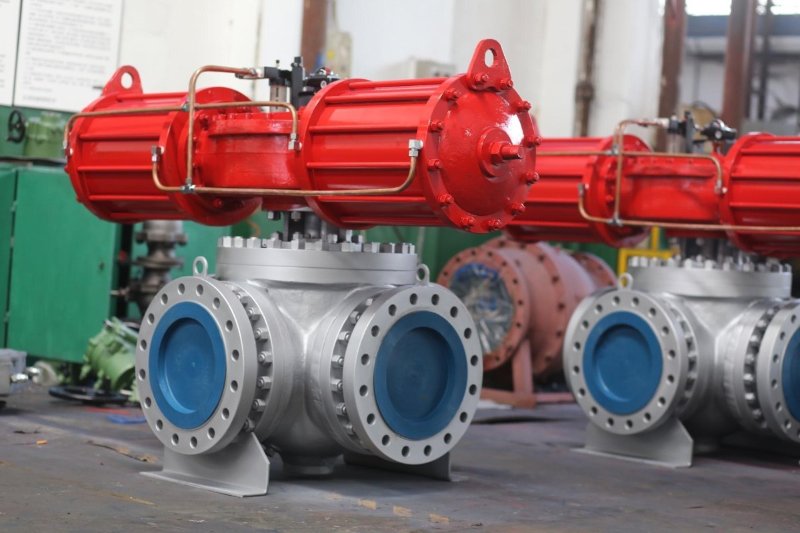

PNEUMATIC_4WAY_BALL VALVE
Specifications
| Model | SUZ |
|---|---|
| Design | 3 Way-4 Way Design Ball Valve For Multiple Diverting / Mixing Operation available in “T” Port / “L” Port / “X” Port |
| Body | WCB / CF8 / CF8M |
| Body / Ball Seat | PTFE / CFT / GFT / PEEK |
| Size | 6" to 16" |
| Ball | CF8 / CF8M |
| Temprature | -25 °C to 180 °C |
| Pressure rating | PN16, PN25, PN40 |
| End Connection | Flanged End - 150 / 300 Class |
GEAR OPERATED TRUNNION MOUNTED BALL VALVES
Specifications
| Model | CWPTMB2 & TMB3 |
|---|---|
| Types Of Valve | TRUNNION MOUNTED BALL VALVE 2 PIECE & 3 PIECE DESIGN |
| Body | WCB/A105/LCC /LCB/SS 304 /SS316/ DUPLEX / SUPER DUPLEX/ INCONEL/ALUMINIUM BRONZE |
| Body / Ball Seat | PTFE / CFT / GFT / PEEK /METAL |
| Size | 2” – 24” – 150# , 2” – 20” – 300#, 2” TO 10” – 600# , 2” TO 10” – 900# 2” TO 6” - 1500# |
| ANSI CLASS | 150#/300#/600#/900#/1500# |
| Ball | A105/SS 304/SS316/DUPLEX 4A-5A, INCONEL, ALUMINIUM BRONZE |
| MFG. DESIGN STD | API 6D, API 607,API 6FA |
| APPLICATIONS | Conveying water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, etc., are widely used in petroleum refining, long-distance pipelines, chemical, paper, pharmaceuticals, water, electricity, municipal services,and steel. |
| End Connection | FLANGED ENDS TO ASME-B-16.5 TILL 600 MM |
| OPERATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |

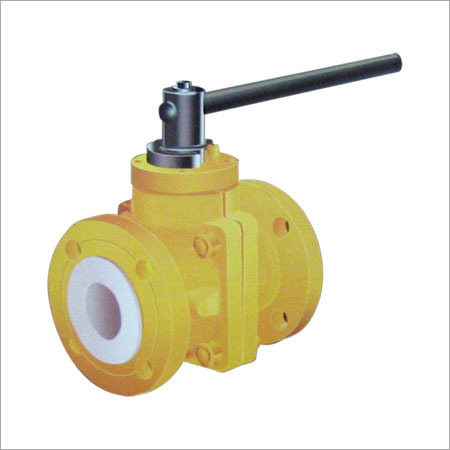

FEP / PFA Lined Flanged End Ball Valve
Specifications
| Model | FPLB |
|---|---|
| Body | D.I / CF8 / CF8M / CF3M |
| Size Range | 1" to 6" Flanged |
| Ball with Shaft | WCB / SS 304 |
| Seals | PTFE |
| Temprature FEP | 180°C |
| Temprature PFA | 230°C |
| Pressure | As Per 150 Class |
| OPRATION | MANUAL GEAR, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |

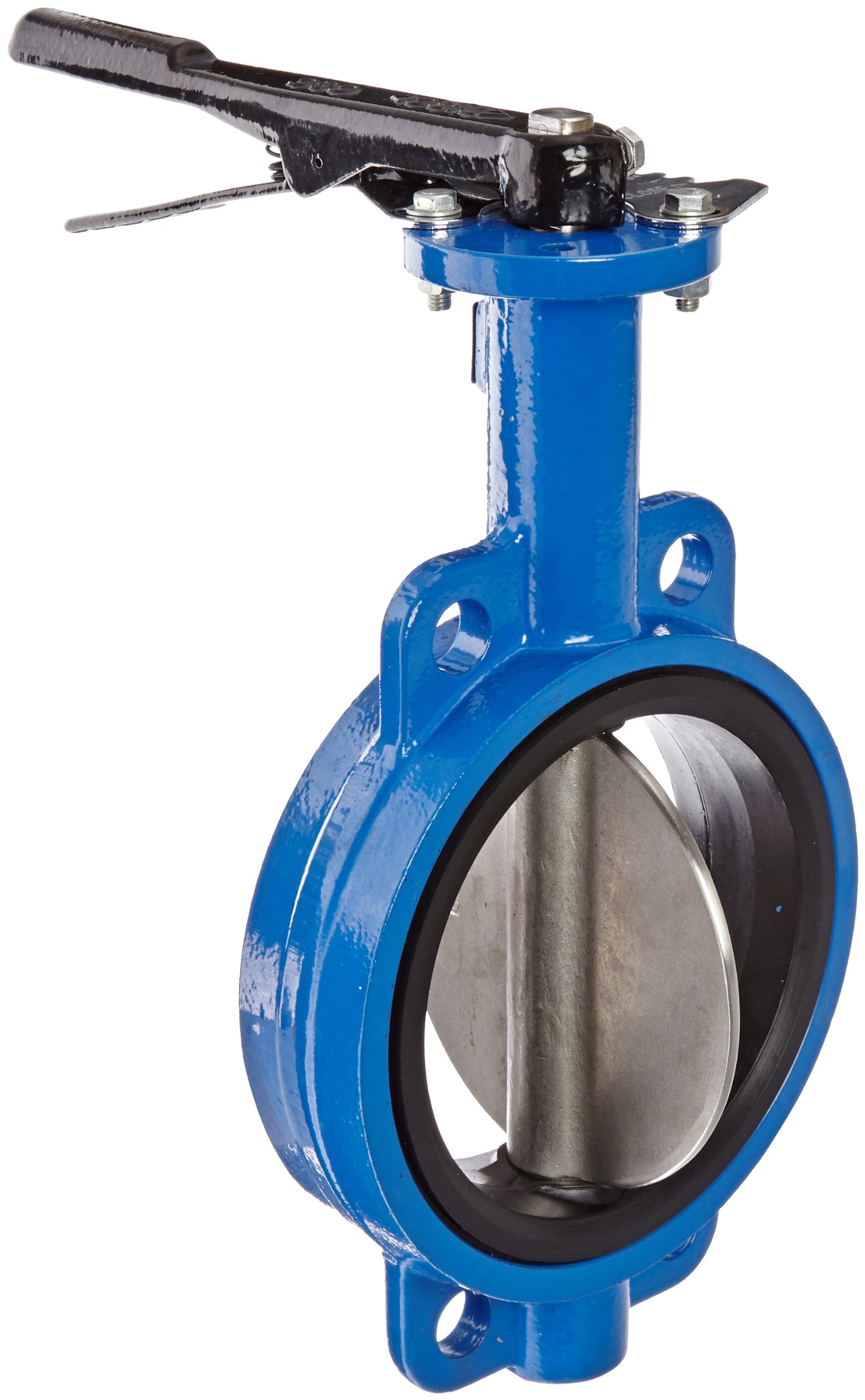

Concentric Disc Butterfly Valve
Technical Details
| BODY | ASTM A 216 GRADE WCB ASTM A 536 GRADE 65-45-15 ASTM A 351 GRADE CF8 – CF8M – CF3M - CD4MCuN |
|---|---|
| DISC | ASTM A 216 GRADE WCB ASTM A 536 GRADE 65-45-15 ASTM A 351 GRADE CF8 – CF8M – CF3M - CD4MCuN |
| SEAT | NITRILE / EPDM / VITON / HYPLON / SILICON |
| SHAFT | AISI 410 / AISI 304 / AISI 316 / AISI 316 L / MONEL |
| END | WAFER TYPE / DOUBLE FLANGED / LUG TYPE TO SUIT ANSI B 16.5 150# / PN 16 / PN 20 |
| SIZE | 80 MM TO 1200 MM |

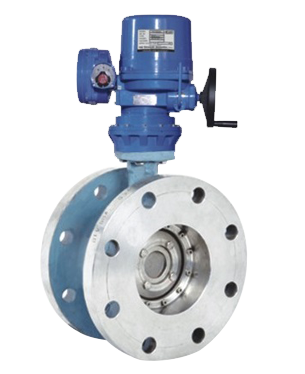

Offset Disc Butterfly Valve:
Technical Details
| BODY | ASTM A 216 GRADE WCB ASTM A 536 GRADE 65-45-15 ASTM A 351 GRADE CF8 – CF8M – CF3M - CD4MCuN |
|---|---|
| DISC | ASTM A 216 GRADE WCB ASTM A 536 GRADE 65-45-15 ASTM A 351 GRADE CF8 – CF8M – CF3M - CD4MCuN |
| DISC SEAL | PTFE / RPTFE / NITRILE / EPDM / VITON |
| SHAFT | AISI 410 / AISI 304 / AISI 316 / AISI 316 L / MONEL |
| END | WAFER TYPE / DOUBLE FLANGED / LUG TYPE TO SUIT ANSI B 16.5 150# / 300# / 600# / PN 16 / PN 20 / PN 25 / PN 40 |
| SIZE | 65 MM TO 1200 MM |

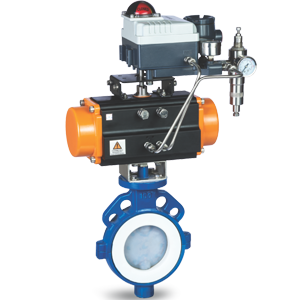

FEP / PFA LINED BUTTERFLY VALVE
Technical Details
| BODY | ASTM A 126 GRADE WCB ASTM A 351 GRADE CF8 ASTM A 351 GRADE CF8M |
|---|---|
| DISC | ASTM A 126 GRADE WCB ASTM A 351 GRADE CF8 ASTM A 351 GRADE CF8M |
| SEAT | FEP / PFA |
| SHAFT | AISI 410 / AISI 304 / AISI 316 – FEP / PFA LINED |
| END | WAFER TYPE TO SUIT ANSI B 16.5 150# |
| SIZE | 50 MM TO 300 MM |

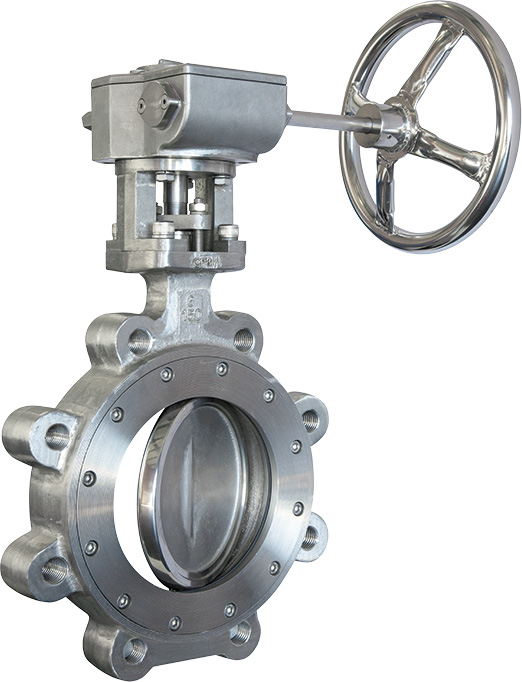

HIGH PERFORMANCE BUTTERFLY VALVE FOR HIGH TEMPERATURE
Technical Details
| BODY | ASTM A 216 GRADE WCB ASTM A 536 GRADE 65-45-15 ASTM A 351 GRADE CF8 – CF8M – CF3M - CD4MCuN |
|---|---|
| DISC | ASTM A 216 GRADE WCB ASTM A 536 GRADE 65-45-15 ASTM A 351 GRADE CF8 – CF8M – CF3M - CD4MCuN |
| DISC SEAL | PTFE / RPTFE / GRAPHITE / METAL |
| SHAFT | AISI 410 / AISI 304 / AISI 316 / AISI 316 L / MONEL |
| END | WAFER TYPE / DOUBLE FLANGED / LUG TYPE TO SUIT ANSI B 16.5 150# / 300# / PN 16 / PN 20 / PN 25 / PN 40 |
| SIZE | 40 MM TO 900 MM |

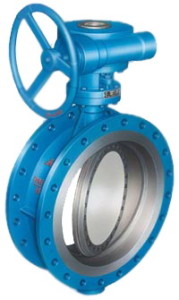

Triple Offset Fire Safe Butterfly Valve
Technical Details
| BODY | ASTM A 216 GRADE WCB ASTM A 351 GRADE CF8 ASTM A 351 GRADE CF8M – CF3M |
|---|---|
| DISC | ASTM A 216 GRADE WCB ASTM A 351 GRADE CF8 ASTM A 351 GRADE CF8M – CF3M |
| DISC SEAL | PTFE / GFT / METAL up to 600˚C |
| SHAFT | AISI 410 / AISI 304 / AISI 316 / AISI 316 L / MONEL |
| END | WAFER TYPE / DOUBLE FLANGED / LUG TYPE TO SUIT ANSI B 16.5 150# / 300# / PN 16 / PN 20 / PN 25 / PN 40 |
| SIZE | 50 MM TO 1200 MM |

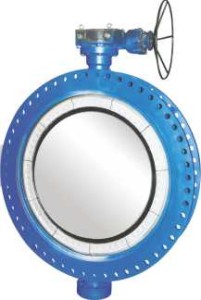

FABRICATED BUTTERFLY VALVE
Technical Details
| BODY | IS 2062 GR. B M.S |
|---|---|
| DISC | IS 2062 GR. B M.S |
| DISC SEAL | NITRILE / EPDM / VITON |
| SHAFT | ASTM A -479 TYPE 410 / 304 /316 |
| END | DOUBLE FLANGED |
| SIZE | 300 MM TO 2600 MM |

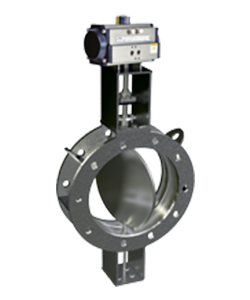

DAMPER BUTTERFLY VALVE
Technical Details
| BODY | IS 2062 GR. B M.S / ASTM A 351 GR. CF8 |
|---|---|
| DISC | IS 2062 GR. B M.S / ASTM A 351 GR. CF8 |
| SHAFT | AISI 410 / AISI 304 |
| END | DOUBLE FLANGED |
| SIZE | 200 MM TO 2000 MM |
WEDGE GATE VALVE
Technical Details
| BODY | CI/WCB/WC 6/WC 9/SS 304/SS316 / DUPLEX/SUPER DUPLEX |
|---|---|
| TRIMS | 13% CHROME/ 304 SS & 304L/ 316 SS & 316L/317/MONEL |
| ANSI CLASS | 150#/300#/600#/900#/1500#/2500# |
| MFG. DESIGN STD | API 600 |
| INSPECTION & TESTING STD | API 598 |
| END CONNECTION | FLANGED ENDS TO ASME-B-16.5 TILL 600 MM AS PER ASME-B-16.47 FOR 600MM ABOVE SOCKET WELD ENDS AS PER ASME-B-16.11 BUTT WELD ENDS AS PER ASME-B-16.25 |
| SIZE RANGE | 1” – 36” – 150# , 1” – 36” – 300#, 2” TO 18” – 600# , 2” TO 18” – 900# 2” TO 10” - 1500# , 2” TO 6” – 2500# |
| APPLICATIONS | STEEL SECTORS, OIL AND GAS , POWER SECTORS , REFINERIES , PETROCHEMICALS , FERTILIZERS ,ENERGIES , AND WATER DE-SANITATION PLANTS |
| OPERATION | HAND WHEEL,MANUAL GEAR, PNEUMATIC, ACTUATOR, ELECTRIC ACTUATOR |
PRESURE SEAL GATE VALVE
Technical Details
| BODY | WCB/WC 6/WC 9/SS 304/SS316 / DUPLEX/SUPER DUPLEX |
|---|---|
| TRIMS | 13% CHROME/ 304 SS & 304L/ 316 SS & 316L/317/MONEL |
| ANSI CLASS | 600#/900#/1500#/2500# |
| MFG. DESIGN STD | API 600 |
| INSPECTION & TESTING STD | : API 598/EN 122266 |
| END CONNECTION | FLANGED ENDS TO ASME-B-16.5 BUTT WELD ENDS AS PER ASME-B-16.25 |
| SIZE RANGE | : 2” TO 18” – 600# , 2” TO 18” – 900# 2” TO 10” - 1500# , 2” TO 10” – 2500# |
| APPLICATIONS | OIL AND GAS , POWER SECTORS , REFINERIES , STEAM |
| OPERATION | : GEAR OPERATE, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |
KNIFE GATE VALVE
Technical Details
| BODY | CI/WCB/WC 6/WC 9/SS 304/SS 316/DUPLEX/CD4MCUN |
|---|---|
| TRIMS | 13% CHROME/ 304 SS & 304L/ 316 SS & 316L/317/MONEL |
| SIZE RANGE | 1” TO 24” |
| APPLICATIONS | PULP AND PAPER INDUSTRIES, CHEMICAL PLANTS, WASTE WATER TREATMENT PLANTS, SEWERAGE WORKS, MINERAL PROCESSING, MINING AND FOOD PROCESSING INDUSTRIES |
| OPERATION | HAND WHEEL,MANUAL GEAR, PNEUMATIC, ELECTRIC ACTUATOR |
BELLOW SEAL VALVE
Technical Details
| CI/WCB/WC 6/WC 9/SS 304/SS316 / DUPLEX/SUPER DUPLEX |
| 13% CHROME/ 304 SS & 304L/ 316 SS & 316L/317/MONEL |
| 150#/300#/600#/900#/1500#/2500# |
| API 600 |
| API 598 |
| FLANGED ENDS TO ASME-B-16.5 TILL 600 MM AS PER ASME-B-16.47 FOR 600MM ABOVE SOCKET WELD ENDS AS PER ASME-B-16.11 BUTT WELD ENDS AS PER ASME-B-16.25 |
| 1” – 36” – 150# , 1” – 36” – 300#, 2” TO 18” – 600# , 2” TO 18” – 900# 2” TO 10” - 1500# , 2” TO 6” – 2500# |
| STEEL SECTORS, OIL AND GAS , POWER SECTORS , REFINERIES , PETROCHEMICALS , FERTILIZERS ,ENERGIES , AND WATER DE-SANITATION PLANTS |
| HAND WHEEL,MANUAL GEAR, PNEUMATIC, ACTUATOR, ELECTRIC ACTUATOR |
FORGE STEEL GATE VALVE
Technical Details
| BODY | A105/F304/F316/F11/F22 |
|---|---|
| TRIMS | F6/ F304 & 304L/ F316 & 316L/F22 |
| ANSI CLASS | 150#,300#,600#/900#/1500# ANSI CLASS FOR S.W/SCREWED END : 800#/1500# |
| END CONNECTION | RF/RTJ/BUTTWELD/SOCKET WELD |
| SIZE RANGE | : ½ ” , ¾ “, 1” , 1 ¼ “ . 1 ½ “ , 2 “ |
| APPLICATIONS | WATER , OIL & GAS |
| OPERATION | : HAND WHEEL,MANUAL GEAR, PNEUMATIC, ELECTRIC ACTUATOR |

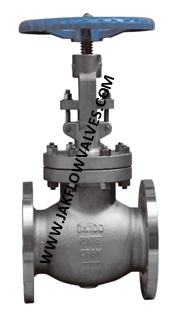

CAST STEEL GLOBE VALVES
Technical Details
| BODY | : CI/WCB/WC 6/WC 9/LCB/SS 304 /SS316/ DUPLEX / SUPER DUPLEX |
|---|---|
| DISC | A217-CA15,WC 6/WC 9/C5 /SS316/ DUPLEX |
| ANSI CLASS | 150#/300#/600#/900#/1500#/2500# |
| MFG. DESIGN STD | API 600 |
| INSPECTION & TESTING STD | API 598 |
| END CONNECTION | FLANGED ENDS TO ASME-B-16.5 TILL 600 MM AS PER ASME-B-16.47 FOR 600MM ABOVE SOCKET WELD ENDS AS PER ASME-B-16.11 BUTT WELD ENDS AS PER ASME-B-16.25 |
| SIZE RANGE | 2” – 24” – 150# , 2” – 16” – 300#, 2” TO 16” – 600# , 2” TO 12” – 900# 2” TO 12” - 1500# , 2” TO 8” – 2500# |
| APPLICATIONS | STEEM, THROTTLING PURPOSE, STEEL SECTORS, OIL AND GAS , POWER SECTORS , REFINERIES , PETROCHEMICALS |
| OPERATION | HAND WHEEL,MANUAL GEAR, PNEUMATIC, ACTUATOR, ELECTRIC ACTUATOR |
FORGE STEEL GLOBE VALVE
Technical Details
| BODY | A105/F304/F316/F11/F22 |
|---|---|
| STEM | F6/ F304 & 304L/ F316 & 316L/F22 |
| ANSI CLASS | 150#,300#,600#/900#/1500# ANSI CLASS FOR S.W/SCREWED END : 800#/1500# |
| END CONNECTION | RF/RTJ/BUTTWELD/SOCKET WELD |
| SIZE RANGE | ½ ” , ¾ “, 1” , 1 ¼ “ . 1 ½ “ , 2 “ |
| APPLICATIONS | : WATER , OIL & GAS |
| OPERATION | HAND WHEEL,MANUAL GEAR, PNEUMATIC, ELECTRIC ACTUATOR |
PRESURE SEAL GLOBE VALVE
Technical Details
| BODY | WCB/WC 6/WC 9/SS 304/SS316 /SS 316L/ DUPLEX/SUPER DUPLEX/SPECIAL ALLOYS |
|---|---|
| TRIMS | : AS PER MOC SELECTION DONE |
| ANSI CLASS | 600#/900#/1500#/2500# |
| MFG.DESIGN STD | : API 600/603 |
| INSPECTION & TESTING STD | API 598 |
| END CONNECTION | FLANGED ENDS TO ASME-B-16.5 , RTJ, BUTT WELD ENDS AS PER ASME-B-16.25 |
| SIZE RANGE | 2” TO 18” – 600# , 2” TO 16” – 900# 2” TO 10” - 1500# , 2” TO 8” – 2500# |
| APPLICATIONS | HIGH PRESSURE AND HIGH TEMPERATURE APPLICATIONS FOR ALL TYPE OF FLUIDS. LIKE NUCLEAR STEAM GENERATING STATIONS, INDUSTRIAL/CHEMICAL PLANTS, AND THERMAL POWER PLANTS |
| OPERATION | GEAR OPERATE, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |
ANGLE TYPE GLOBE VALVE
Technical Details
| BODY | WCB/WC 6/WC 9/SS 304/SS316 /SS 316L |
|---|---|
| TRIMS | ACCORDING TO MOC SELECTION |
| ANSI CLASS | PN 16, PN 25, PN 40 |
| MFG.DESIGN STD | DIN 3356 |
| Face To Face | DIN3202-F32, EN558-1 |
| END FLANGE DIMENSIONS | DIN2543(PN16) ,DIN2544(PN25) , DIN2545(PN40),EN1092-1 |
| SIZE RANGE | 1/2” TO 6” |
| APPLICATIONS | : COOLING WATER SYSTEMS WHERE FLOW NEEDS TO BE REGULATED, FUEL OIL SYSTEM WHERE FLOW IS REGULATED AND LEAKTIGHTNESS IS OF IMPORTANCE, HIGH-POINT VENTS AND LOW-POINT DRAINS WHEN LEAKTIGHTNESS AND SAFETY ARE MAJOR CONSIDERATIONS, FEEDWATER, CHEMICAL FEED, CONDENSER AIR EXTRACTION, AND EXTRACTION DRAIN SYSTEMS, BOILER VENTS AND DRAINS, MAIN STEAM VENTS AND DRAINS, AND HEATER DRAINS, TURBINE SEALS AND DRAINS, TURBINE LUBE OIL SYSTEM AND OTHERS |
| OPERATION | : GEAR OPERATE, PNEUMATIC ACTUATOR, ELECTRIC ACTUATOR |
GLOBE CONTROL VALVES
Technical Details
| BODY | WCB/WC 6/WC 9/SS 304/SS316 /SS 316L |
|---|---|
| TRIMS | EQUAL PERCENTAGE, CAGE GUIDED, PARABOLIC |
| PRESSURE RATING | 150# , 300# , 600# ON REQUEST |
| CHARACTERISTICS | LINEAR |
| SIZE RANGE | 1/2” TO 12” |
| APPLICATIONS | THERMIC FLUID APPLICATION, HOT OIL, STEAM, BOILER ETC., HIGH TEMPERATURE UP TO 450 C., MIXING AND DIVERTING APPLICATION, APPLICATION WHICH REQUIRE PRECISION CONTROL AT HIGH TEMPERATURE |
| ACCESSORIES | SOLENOID VALVE, 4~20mA ELECTRO-PNEUMATIC POSITIONER, MICRO LIMIT SWITCH BOX, AIR FILTER REGULATOR |

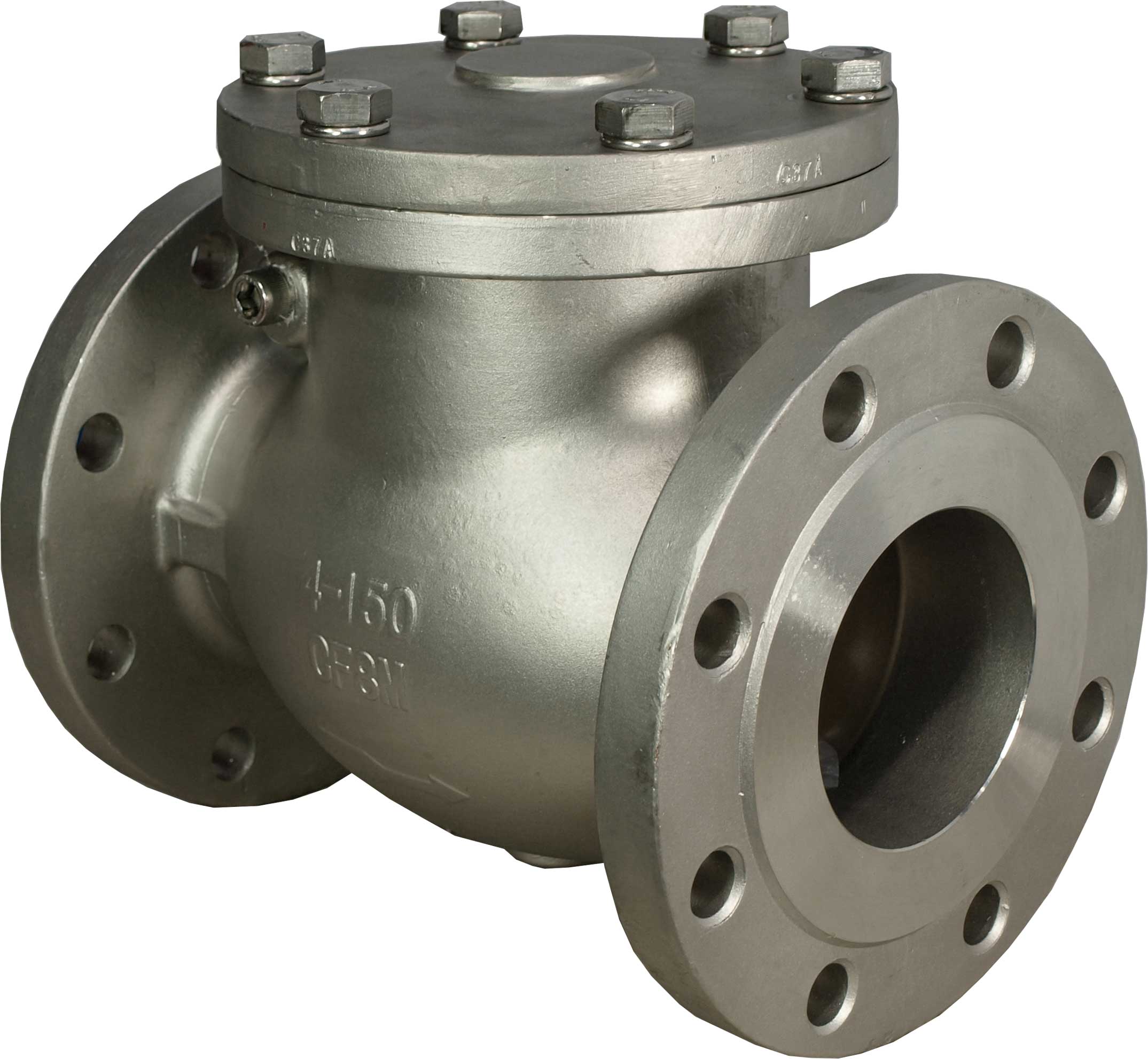

Swing Check Valve
Technical Details
| Type Of Valve | Bolted Cover, swing Type Disc, Threaded or Welded seating Ring |
|---|---|
| ANSI Class | 150#-1500#, NPs 1/236~ |
| SIZE | 1" TO 36" |
| Basic Design | ANsI B16.34, Bs 1868 |
| Face to Face Dimension | ANsI B16.10 |
| Flanged Ends | 2~24” to ANsI B 16.5, >24” to Mss sP-44, to API 605 on request B.W. Ends to ANsI B 16.25 |

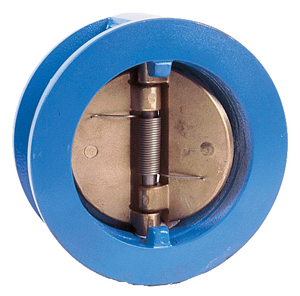

Dual Plate Check Valve
Technical Details
| BODY | WCB/WC 6/WC 9/SS 304/SS316 / DUPLEX/SUPER DUPLEX |
|---|---|
| DISC/DOOR | SS 304/SS316 / DUPLEX/SUPER DUPLEX |
| Class | 150~300~600~900~1500 |
| size | NPs 2″ TO 36″ |
| Design and Manufacture | ANsI B16.34,API 6D, |
| Face to face | API 6D, API 594 |
| Test and inspection | API 6D |
| END CONNECTION | Wafer END, Double Flanged END |
Wafer Check Valve
Technical Details
| BODY | WCB/SS 304/SS316 / DUPLEX/SUPER DUPLEX |
|---|---|
| DISC | SS 304/SS316 / DUPLEX/SUPER DUPLEX |
| Class | 150~300 |
| size | NPs 1″ TO 36″ |
| END CONNECTION | Wafer END, Double Flanged END |

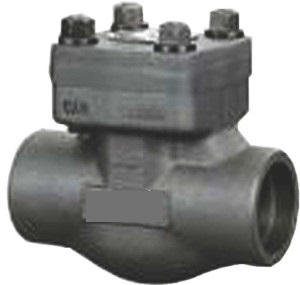

Forged Piston Lift Check Valve
Technical Details
| BODY | A105, F11, F22, F304, F316, F316L |
|---|---|
| TRIMS | 13% CHROME/ F304 & F304L/ F316 & F316L/317/MONEL |
| SIZE | 1/2" TO 2" |
| Class | 150~300~600~800~1500 |
| Basic Design | AsME B16.34, Bs 1868 |
| Face to Face Dimensions | AsME B 16.10 |
| End Connection | SOCKET WELD, SCREWED END, FLANGED END |
Spring Loaded Single Disc Check Valve(DCV)
Technical Details
| BODY | WCB/SS 304/SS316 / DUPLEX/SUPER DUPLEX |
|---|---|
| DISC | SS 304/SS316 / DUPLEX/SUPER DUPLEX |
| Class | 150~300 |
| size | NPs 1″ TO 36″ |
| END CONNECTION | Wafer END, Double Flanged END |
PRESSURE REDUCING VALVE
Technical Details
| BODY | A105/WCB/SS 304/SS 316 L |
|---|---|
| SEAT | IBR/PTFE/METAL |
| ANSI CLASS | 150#,300# |
| END CONNECTION | FLANGED END/SCREWED END BSP/NPT |
| SIZE RANGE | 1: ½ ”X ½” TO 10” X 14” |
| APPLICATIONS | WATER , OIL , STEAM |
| PRESSURE RANGE | 0.5~6 BAR, 6~12 BAR,35~45 BAR , SET PRESSURE AS PER CLIENT REQUEST |
SAFETY VALVE
Technical Details
| BODY | A105/WCB/SS 304/SS 316 |
|---|---|
| SEAT | METAL SEAT |
| ANSI CLASS | 150#,300#,600# ON REQUEST |
| END CONNECTION | RF/RTJ/SCREWED END |
| SIZE RANGE | ½ ”X ½” TO 10” X 14” |
| APPLICATIONS | WATER , OIL & GAS |
| PRESSURE RANGE | : 0.5~6 BAR, 6~12 BAR,35~45 BAR , SET PRESSURE AS PER CLIENT REQUEST |

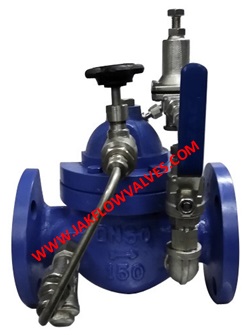

HYDROLIC PRESSURE REDUCING VALVE
Technical Details
| BODY | WCB/SS 304/SS 316 |
|---|---|
| INTERNAL PARTS | STAINLESS STEEL |
| DIAPHRAGM | EPDM |
| ANSI CLASS | 150#,300 |
| END CONNECTION | FALANGED END |
| SIZE RANGE | 2” TO 24” |
| APPLICATIONS | WATER , OIL & GAS, AIR |
| PRESSURE RANGE | 0.5~6 BAR, 6~12 BAR,35~45 BAR , SET PRESSURE AS PER CLIENT REQUEST |
PRESSURE RELIEF VALVE-PRESSURE SUSTAINING VALVE
